TERALyte 1” is a 15/16” wide linear light with on-board driver and choice of optics specifically designed for Data Center and other critical infrastructure environments
Lights directly replace the 15/16” ceiling grid, becoming a structurally integrated component, optimizing the ceiling’s functions of providing thermal containment in data center environments
Low profile design leaves plenum completely unoccupied, helps coordination of other ceiling utilities
Streamlined integration and installation process guarantees as-specified results
Armstrong and Universal mounting options
Customizable light outputs (500 – 1750 lm/ft)
90 CRI and R9 > 70 standard (3000K, 3500K, 4000K, and 5000K)

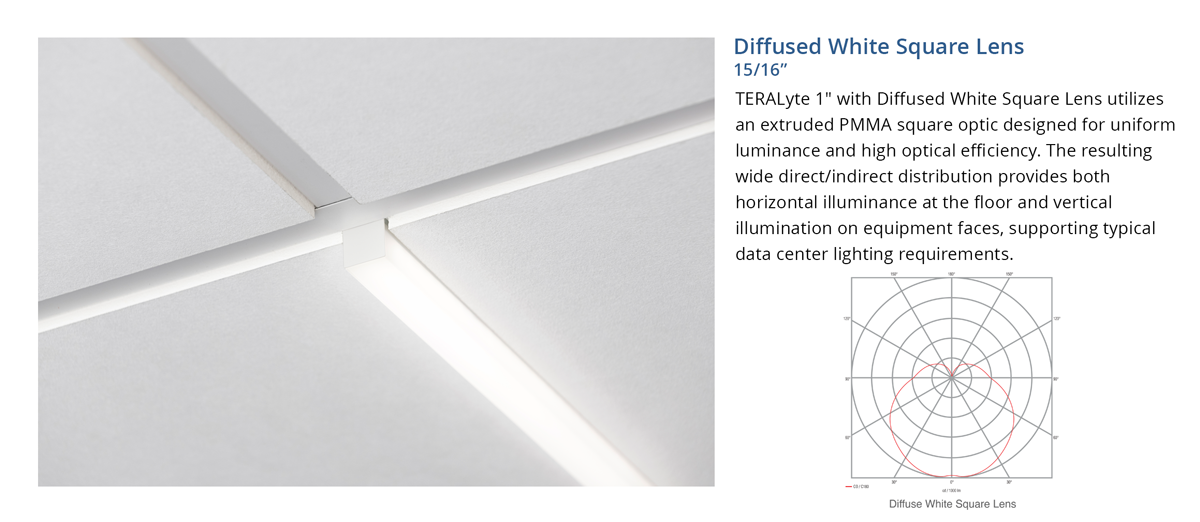

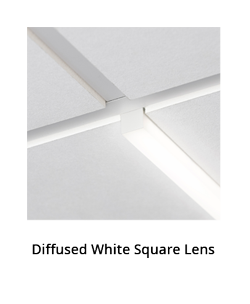

Round and Square lens options, optimizing vertical foot candles for aisle illumination
Provided with on-board driver for 120-277VAC with 0-10V dimming connections and a range of integrated controls options available
Battery Back-Up Kit available (sold separately)
Meets BAA/BABA requirements
Provides a sustainable solution by replacing building elements that already exist
