T-BAR ECO is a line voltage linear light offering the same key benefits as our T-BAR LED X-Series family, but with a more basic feature set for contractor design-build projects
Lights directly replace the 9/16” and 15/16” ceiling grid, becoming a structurally integrated component, optimizing the ceiling’s functions of enhancing occupant well-being.
Low profile design leaves plenum completely unoccupied, helps coordination of other ceiling utilities
Streamlined integration and installation process guarantees as-specified results
Armstrong and Universal mounting options
High and Low light output options (customizable light outputs on request)
90 CRI and R9 > 70 standard (3000K, 3500K, 4000K, and 5000K)

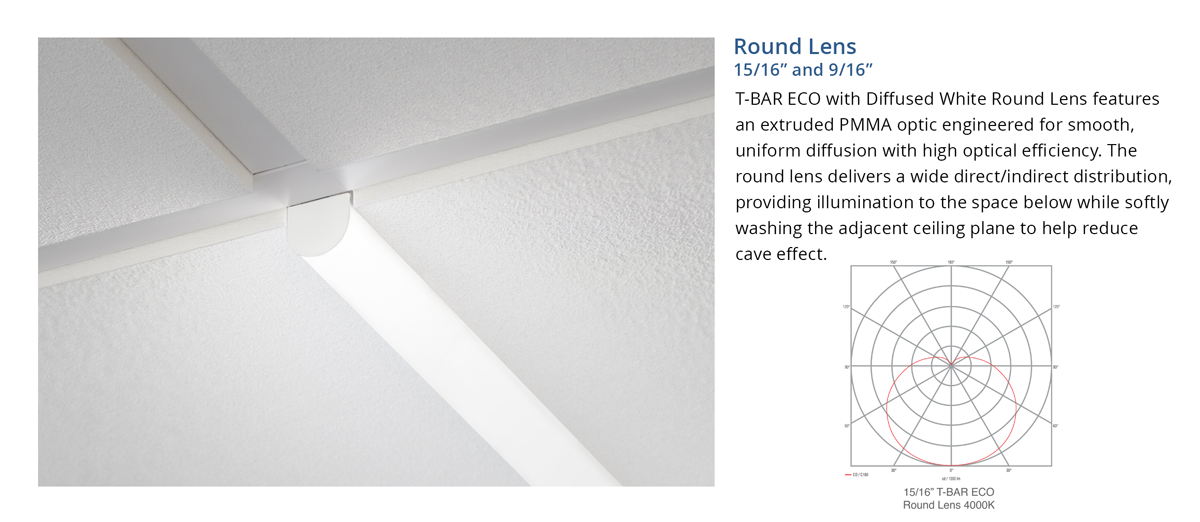

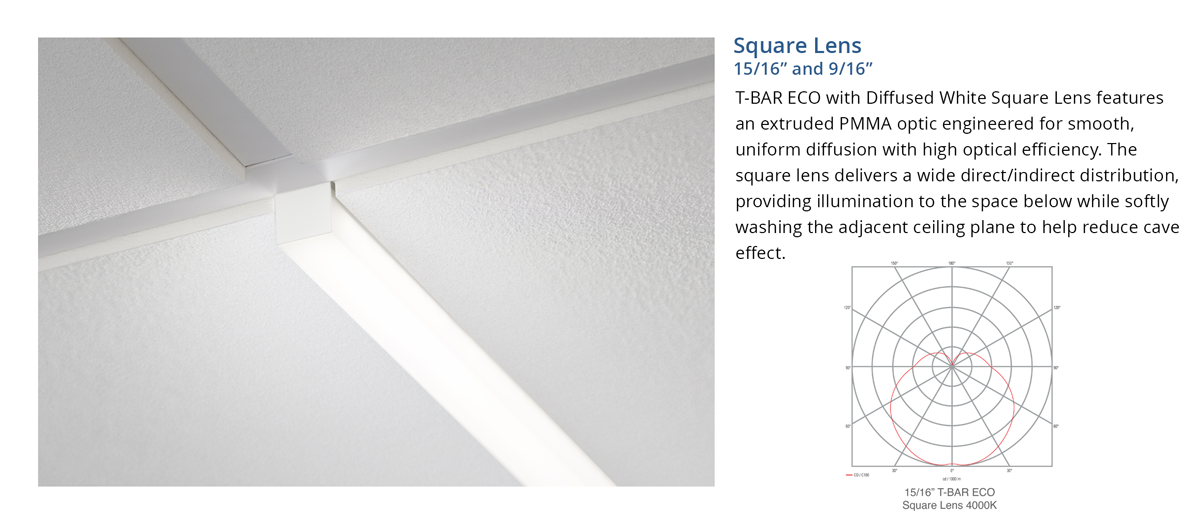

Round and Square lens options
Provided with on-board driver for 120-277VAC with 0-10V dimming connections and a range of integrated controls options available
Battery Back-Up Kit available (sold separately)
Meets BAA/BABA requirements
Provides a sustainable solution by replacing building elements that already exist
