T-BAR UP offers indirect linear lighting protruding only 2” from the ceiling that replaces the 9/16” or 15/16” ceiling grid, becoming a structurally integrated component, optimizing the ceiling’s functions of enhancing occupant well-being.
Low profile design leaves plenum completely unoccupied, helps coordination of other ceiling utilities
Streamlined integration and installation process guarantees as-specified results
Armstrong and Universal mounting options
Low Voltage 24VDC product (8W/ft) with plenum cables and quick connectors for daisy-chain configurations
90 CRI and R9 > 70 standard (3000K, 3500K, 4000K, and 5000K)

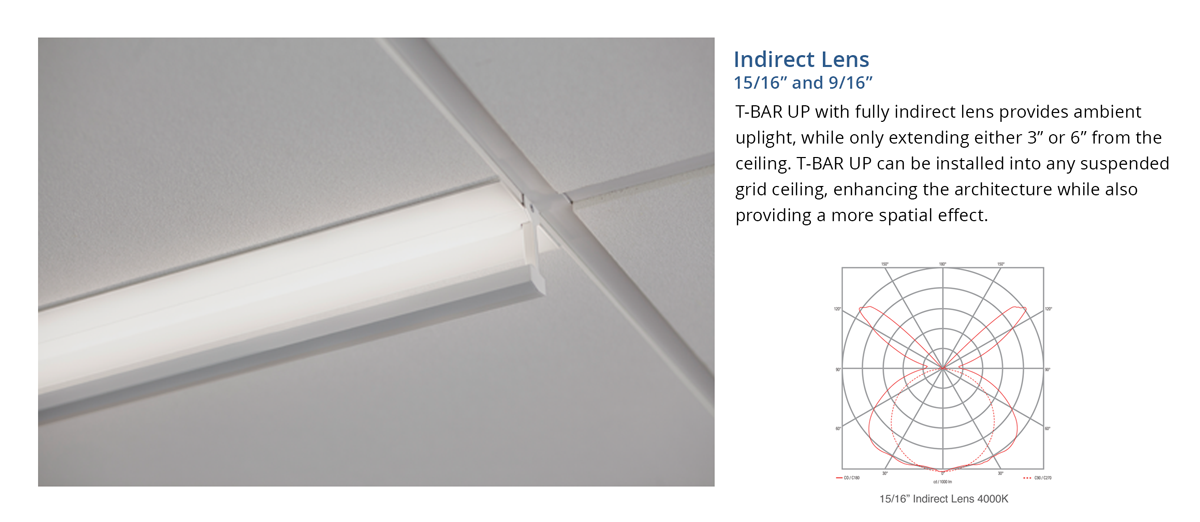

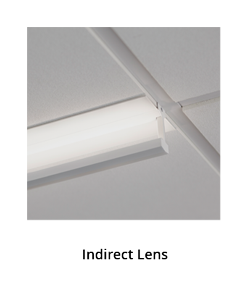

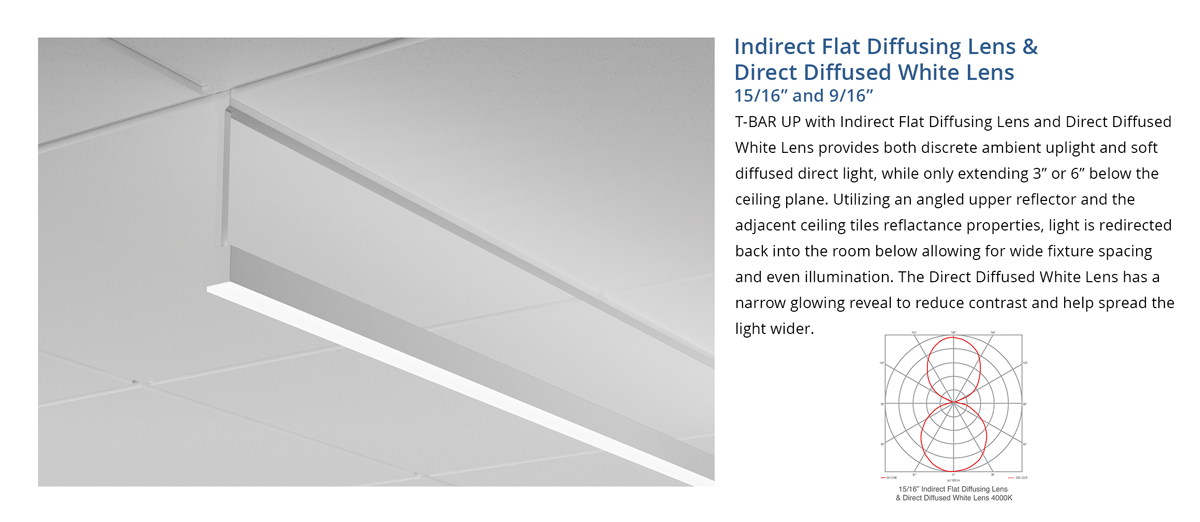

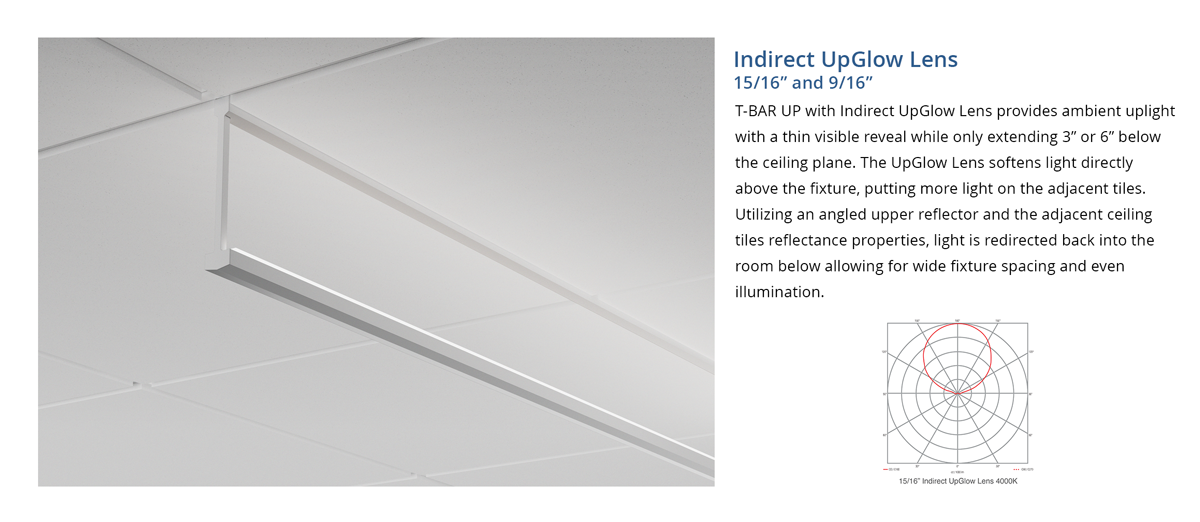

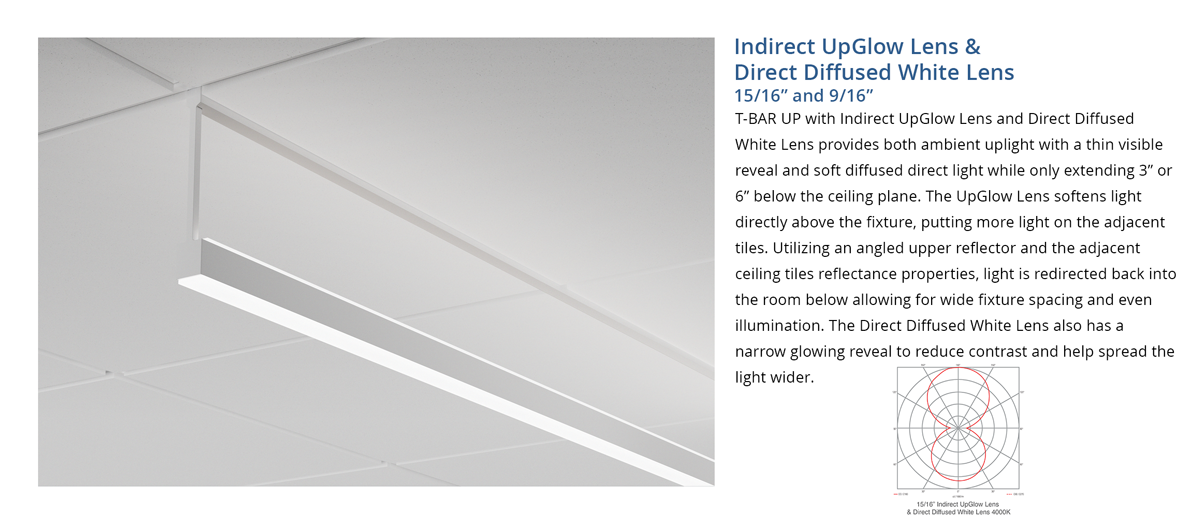

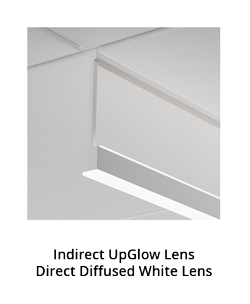

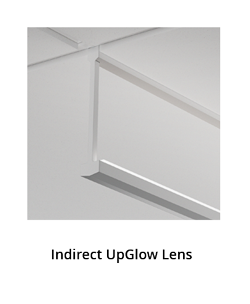

Indirect lens with reflective baffle to spread the light wide into the room below
Remotely installed 24VDC Universal Input 100W, 200W, and 400W drivers, battery back-up kit, and a range of integrated controls options available (sold separately)
Meets BAA/BABA requirements
Provides a sustainable solution by replacing building elements that already exist
